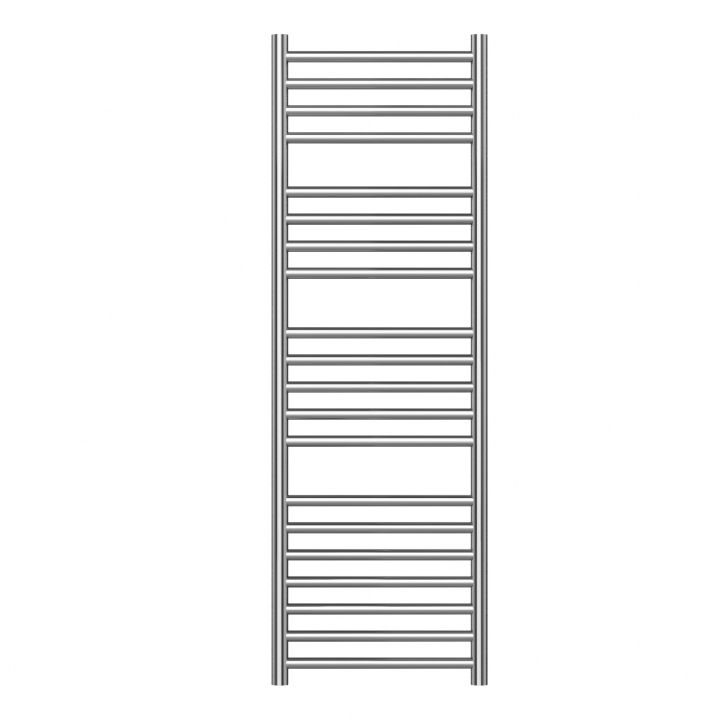

Nova 304 Stainless Steel Heated Towel Rail - 1200 x 400mm

Product Overview

Upgrade your bathroom with the Nova Heated Towel Rail (1200 x 400mm), a taller, more powerful heating solution designed for modern family bathrooms. Precision-engineered from Grade 304 Stainless Steel, this rail offers exceptional resistance to rust and corrosion, ensuring it retains its stunning mirror-finish even in damp conditions.

Standing at 1200mm tall, this model features 20 horizontal bars, providing significantly more hanging space for multiple bath towels. With an impressive heat output of 980 BTU, it ensures your towels are kept luxuriously warm while helping to maintain a comfortable ambient temperature in your bathroom.

Key Features

Superior Durability: Crafted from 100% 304 Grade Stainless Steel, preventing the rusting and peeling often seen with standard chrome-plated mild steel rails.
Brushed Stainless Steel Finish
High Heat Output: Generates 980 BTU ( $\Delta 50^\circ\text{C}$ ) / 287 Watts, offering powerful drying capabilities for larger households.
Maximized Storage: The vertical design incorporates 20 crossbars ( $\Phi 22\text{mm}$ ) arranged in practical groups, allowing you to dry multiple large towels simultaneously.
Universal Fit: Features standard G1/2" connections for easy installation with UK central heating systems.

Technical Specifications

Specification	Details
Product Code	NOVA-1200-400-SS
Height	$1200\text{mm}$
Width	$400\text{mm}$
Material	304 Stainless Steel
Finish	Brushed Stainless Steel
Rail Configuration	20 Bars (Horizontal $\Phi 22\text{mm}$ / Vertical Collectors $\Phi 32\text{mm}$ )
Heat Output ( $\Delta 50^\circ\text{C}$ )	$980 \text{ BTU}$
Wattage	$287 \text{ Watts}$
Pipe Centres	$368\text{mm}$ (Left to Right)
Wall to Front Projection	$92\text{mm} - 95\text{mm}$
Wall to Pipe Centre	$60\text{mm} - 63\text{mm}$
Thread Size	G 1/2"
Net Weight	Approx. $6.0\text{ kg}$

Installation Guide

Pipe Centres: The pipe inlet centres are 368mm. Please measure your pipework carefully before tiling or drilling.
Wall Distance: Pipe centres are positioned 60mm - 63mm from the wall, allowing for a neat finish over tiles or skirting.
Bleeding: A bleed valve is located at the top of the rail. Ensure the system is bled upon filling to prevent cold spots at the top of the rail.

Care & Maintenance (304 Stainless Steel)

Cleaning: To maintain the high-gloss mirror finish, simply wipe the rail down regularly with a soft microfibre cloth and warm, soapy water. Buff dry to prevent water spots.
What to Avoid:
- Do not use abrasive sponges, scouring pads, or steel wool, as these will scratch the polished surface.

Nova 304 Stainless Steel Heated Towel Rail - 1200 x 400mm - Brushed Stainless Steel

Product Overview

Key Features

Technical Specifications

Installation Guide

Care & Maintenance (304 Stainless Steel)

Excellent corrosion resistance

Durability & strength

Hygienic & easy to clean

Heat resistance

Recyclable and Environmentally Friendly
